详细介绍：

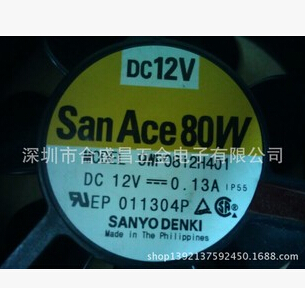

全新原装正品三洋防水风扇

Splash Proof Fan San Ace 80W

9WP0812H4011

本产品的PDF文件可以下载。

Splash Proof Fan San Ace 80W
Square type:80mm Thick:25mm

IP55,Pulse sensor, Ribless※image is Ribbed model

Features

Material	Frame: Plastics (Flammability: UL94V-0), Impeller:Plastics (Flammability: UL94V-1)
Expected Life	9WP0812G401,90848S401：40,000 h 9WP0812H401,9WP0824H401：60,000 h (Indoor, L10: Survival rate: 90% at 60℃, rated voltage, and continuously run in a free air state)
Motor protection system	Current cut system (with reverse-connection protection)
Dielectric Strength ------------------------------------ Insulation Resistance	50/60 Hz, 500VAC, 1 minute (between lead conductor and frame) -------------------------------------------------------------------------------------------------------------- 10MΩ or more at 500VDC megger (between lead conductor and frame)
Noise measurement method	Measured at 1m distance from the air inlet
Storage Temperature -------------------------------------- Operating Temprature	-30ºC to +70ºC(Non-condensing) -------------------------------------------------------------------------------------------------------------- 9WP0812G401：-10℃ to +60℃ 9WP0812H401,9WP0824H401,90848S401：-10℃ to +70℃
Fan power lead	(+): red (-): black Sencer: yellow

Specifications

Model No.	Rated Voltage (V)	Operating voltage range (V)	Rated current (A)	Rated input (W)	Rated speed (min^-1)	Air flow (m³/min)	Static pressure (Pa)	Noise (dB[A])	Mass (g)
9WP0812H4011	12	10.2to13.8	0.13	1.56	2,900	1.03 ( 36.4 CFM)	35.3 ( 0.142 inchH2O)	29	130

Typical air flow and static pressure characteristics

Dimensions (unit:mm)

Reference dimensional diagram for installation holes (unit:mm)

Corresponding accessories list

Finger guards
Square type

Adaptation machines-Frame size:80mm

Model No.	Surface Finishing	Adaptation machines
109-049C	Nickel-chrome plating	San Ace 80

Finger guards
Square type

Adaptation machines-Frame size:80mm

Resin finger guards
Square type

Adaptation machines-Frame size:80mm

Model No.	Material
109-1002G	Frame:(SPS＋PS alloy)Resin UL File No.E48268 94V-0
