首页>产品中心 > 三洋风扇

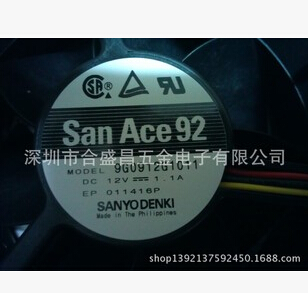

特价供应三洋9238风扇
特价供应三洋9238风扇
详细介绍：
加工定制 是 类型 直流风扇 品牌 Sanyo/三洋
型号 9G0912G1011 电机功率 13.2（w） 电压 12（V）
电流 1.1（A） 适用范围 医疗设备散热、音响设备散热、电脑散热、通讯产品散热 风量 110CFM
风叶直径 82.5±0.3mm 转速 5000RPM 信号输出 FG方波
风扇尺寸 92*92*38 寿命 50000hrs（40℃）
全新原装正品，带FG信号输出

产品名称： 92mm X Thick : 38mm


Splash Proof Fan
San Ace 92W
Click the product type number for detailed information.
Square type  : 92mm  X  Thick : 38mm IP55 (Dust resistant, Machine protected aginst water jets)
Model No. Rated Voltage
(V)		 Rated current
(A)		 Rated input
(W)		 Rated speed
(min-1)		 Air flow
(m3/min)		 Static pressure
(Pa)		 Noise
(dB[A])		 Mass
(g)
9WV0948P1H001
 48 0.75

0.14
 39.4

6.7
 8,500
(PWM Duty 100%)

4,000
(PWM Duty 0%)
 5.05
(178 CFM)

2.37
(83.7CFM)
 385
(1.55inchH2O)

85.2
(0.34inchH2O)
 64

45
 265
Standard Fan
San Ace 92
Click the product type number for detailed information.
Square type  : 92mm  X  Thick : 38mm
Model No. Rated Voltage
(V)		 Rated current
(A)		 Rated input
(W)		 Rated speed
(min-1)		 Air flow
(m3/min)		 Static pressure
(Pa)		 Noise
(dB[A])		 Mass
(g)
9G0912G101
 12 1.1 13.2 5,000 3.10
(110CFM)		 150
(0.602inchH2O)		 50 180
9G0912H101
 12 0.58 6.96 4,000 2.54
(90CFM)		 100
(0.402inchH2O)		 43 180
9G0924G101
 24 0.55 13.2 5,000 3.10
(110CFM)		 150
(0.602inchH2O)		 50 180
9G0924H101
 24 0.3 7.2 4,000 2.54
(90CFM)		 100
(0.402inchH2O)		 43 180
9G0948G101
 48 0.27 12.96 5,000 3.10
(110CFM)		 150
(0.602inchH2O)		 50 180
9G0948H101
 48 0.16 7.68 4,000 2.54
(90CFM)		 100
(0.402inchH2O)		 43 180
Standard Fan
San Ace 92
Click the product type number for detailed information.
Square type  : 92mm  X  Thick : 38mm Ribless models
Model No. Rated Voltage
(V)		 Rated current
(A)		 Rated input
(W)		 Rated speed
(min-1)		 Air flow
(m3/min)		 Static pressure
(Pa)		 Noise
(dB[A])		 Mass
(g)
9G0912G1011
 12 1.1 13.2 5,000 3.10
(110CFM)		 150
(0.602inchH2O)		 50 180
9G0912H1011
 12 0.58 6.96 4,000 2.54
(90CFM)		 100
(0.402inchH2O)		 43 180
9G0924G1011
 24 0.55 13.2 5,000 3.10
(110CFM)		 150
(0.602inchH2O)		 50 180
9G0924H1011
 24 0.3 7.2 4,000 2.54
(90CFM)		 100
(0.402inchH2O)		 43 180
9G0948G1011
 48 0.27 12.96 5,000 3.10
(110CFM)		 150
(0.602inchH2O)		 50 180
9G0948H1011
 48 0.16 7.68 4,000 2.54
(90CFM)		 100
(0.402inchH2O)		 43 180
Standard Fan
San Ace 92
Click the product type number for detailed information.
Square type  : 92mm  X  Thick : 38mm PWM Control
Model No. Rated Voltage
(V)		 Rated current
(A)		 Rated input
(W)		 Rated speed
(min-1)		 Air flow
(m3/min)		 Static pressure
(Pa)		 Noise
(dB[A])		 Mass
(g)
9GV0912P1G03
 12 4.10

0.33
 49.2

4.0
 9,000
(PWM Duty 100%)

2,900
(PWM Duty 0%)
 5.35
(189.0 CFM)

1.72
(60.8 CFM)
 430.0
(1.73inchH2O)

44.6
(0.18inchH2O)
 68

37
 250
9GV0912P1H03
 12 3.50

0.29
 42.0

3.5
 8,500
(PWM Duty 100%)

2,700
(PWM Duty 0%)
 5.05
(178.0 CFM)

1.60
(56.5 CFM)
 385.0
(1.55inchH2O)

38.8
(0.16inchH2O)
 64

34
 250
9GV0948P1H03
 48 0.82

0.14
 39.4

6.7
 8,500
(PWM Duty 100%)

4,000
(PWM Duty 0%)
 5.05
(178.0CFM)

2.37
(83.7CFM)
 385.0
(1.55inchH2O)

85.2
(0.34inchH2O)
 64

45
 250
Standard Fan
San Ace 92
Click the product type number for detailed information.
Square type  : 92mm  X  Thick : 38mm PWM Control, Ribless models
Model No. Rated Voltage
(V)		 Rated current
(A)		 Rated input
(W)		 Rated speed
(min-1)		 Air flow
(m3/min)		 Static pressure
(Pa)		 Noise
(dB[A])		 Mass
(g)
9GV0912P1G031
 12 4.10

0.33
 49.2

4.0
 9,000
(PWM Duty 100%)

2,900
(PWM Duty 0%)
 5.35
(189.0 CFM)

1.72
(60.8 CFM)
 430.0
(1.73inchH2O)

44.6
(0.18inchH2O)
 68

37
 250
9GV0912P1H031
 12 3.50

0.29
 42.0

3.5
 8,500
(PWM Duty 100%)

2,700
(PWM Duty 0%)
 5.05
(178.0 CFM)

1.60
(56.5 CFM)
 385.0
(1.55inchH2O)

38.8
(0.16inchH2O)
 64

34
 250
9GV0948P1H031
 48 0.82

0.14
 39.4

6.7
 8,500
(PWM Duty 100%)

4,000
(PWM Duty 0%)
 5.05
(178.0CFM)

2.37
(83.7CFM)
 385.0
(1.55inchH2O)

85.2
(0.34inchH2O)
 64

45
 250
